640453-4
Manufacturer:
TE Connectivity
Mfr.Part #:
640453-4
Datasheet:
Description:

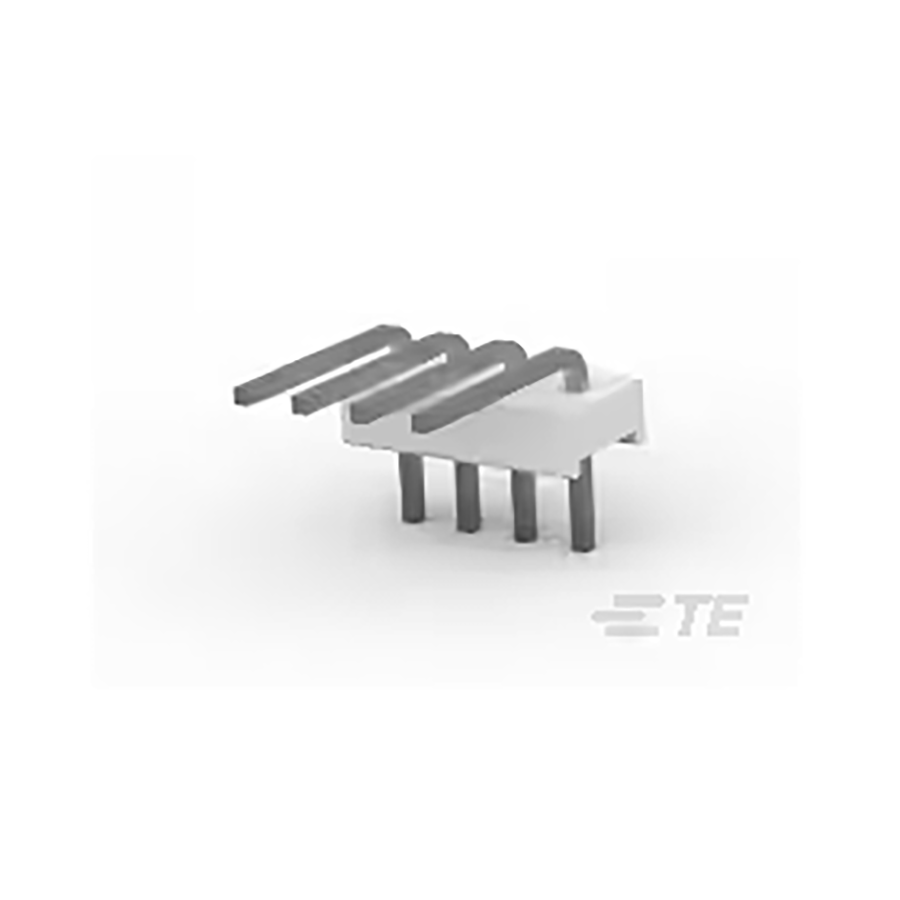

Headers and Wire Housings Through Hole Header, Pin, Plug Number of Positions:4 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Length | 12.7 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -55 °C |
| Voltage Rating (AC) | 250 V |
| Packaging | Bulk |
| Voltage Rating | 250 V |
| Depth | 12.57 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 2.54 mm |
| Contact Plating | Tin |
| Lead Length | 3.56 mm |
| Contact Material(Contact Finish) | Copper |
| Pitch | 2.54 mm |
| Current Rating | 5 A |
| Flammability Rating | UL94 V-0 |
| Approvals | CSA |
| Orientation | Right Angle |
| Operating Supply Voltage | 250 V |
| Lifecycle Status | Production (Last Updated: 1 week ago) |
| Color | Natural, White |
| Gender | Pin (Male) |
| Number of Contacts | 4 |
| ELV | Compliant |
| Connector Type | Header, Pin, Plug |
| Number of Positions | 4 |
| Number of Rows | 1 |
| Row Spacing | 2.54 mm |
| Housing Material | Polyester |
| Circuit Application | Signal |
| Connector System | Wire-to-Board |
| Contact Style | Pin |
| Contact Resistance | 6 mΩ |
| Max Voltage Rating (AC) | 250 V |
| Contact Current Rating | 5 A |
| Housing Color | Natural, White |
| Plating | Tin |
| shrouded | No |
| Contact Mating Length | 7.493 mm |
| PCB Mounting Orientation | Right Angle |
| PCB Thickness | 1.6002 mm |
| Tail Length | 3.56 mm |
| Plating Thickness | 3.81 µm |
| Contact Gender | Male |
| Mating Post Length | 7.49 mm |
| Contact Shape | Square |
| Underplate Material | Nickel |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 1 week ago) |
| Sealable | No |
| Mating Retention | Without |
| Contact Finish Thickness - Mating | 3.81 µm |
| Termination Post Length | 3.56 mm |
| PCB Mount Retention | Without |
| PCB Mount Alignment | Without |
Stock: 1774
Distributors
pcbx
pcbxUnit Price$0.28811
Ext.Price$0.28811
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.28811 | $0.28811 |
| 10 | $0.21117 | $2.11170 |
| 25 | $0.21031 | $5.25775 |
| 50 | $0.19523 | $9.76150 |
| 100 | $0.18124 | $18.12400 |
| 300 | $0.17716 | $53.14800 |
| 500 | $0.17317 | $86.58500 |
| 1000 | $0.16927 | $169.27000 |
| 3000 | $0.16518 | $495.54000 |
| 5000 | $0.16119 | $805.95000 |
| 10000 | $0.15730 | $1573.00000 |
